产品品牌：日本IMV
产品型号：TYPE 3233
主要技术指标：
最适用于建筑振动、道路交通振动等振动测量
常见问答

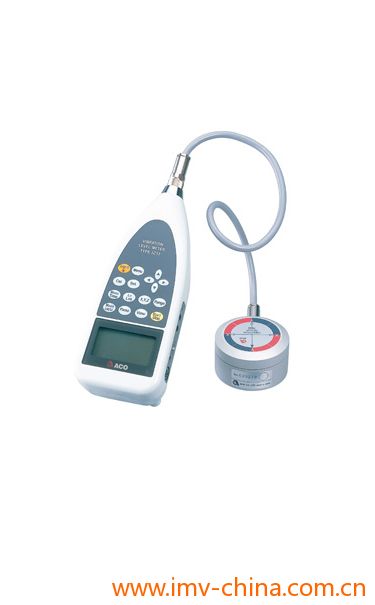

TYPE 3233 - 振动等级测量仪 (用于振动污染)
Specifications
| Applicable Act | Measurement Act JIS C 1510-1995 |
|---|---|
| Measurement Range | 30～110dB |
| Frequency Range | 1～80Hz |
| Level Range | 2 Stage Change-over in 20dB step 30～90dB 50～110dB |
| Linearity | 75dB |
| Measurement Item |
Vibration Level Lv, Vibration Acceleration Level Lva, Power Average Leq, |
| Measurement Time |
1s,3s,5s,10s,1min,5min,10min,15min,30min,1h,8h,24h |
| Bar Indication | Indication Period 64ms |
| Battery Indication | Left Available Time in 4 steps |
| Memory Function | Calculated Value saved in the Memory (approx.550Data) |
| Halt Function | Usual Momentary Halt |
| Calibration Signal | Calibration by the Signal from the build in Oscillator (31.5Hz sinusoidal wave) |
| AC Output |
Output Voltage: 316mVrms(F.S.) Output Impedance: 600Ω Load Resistance 100kΩor higher |
| DC Output |
Output Voltage: 2.5V（F.S) 0.25V/10dB Output Impedance: 50Ω Load Resistance 100kΩor higher |
| I / O Terminal | Interface RS-232C (unsynchronized ) |
| Power | AA battery 4pcs. or AC Adapter |
|
Battery Life (Continuous use) |
Alkaline Cell: approx. 20 hours, Manganese Cell approx. 10 hours Use with Back Light lit on: 1/3 of above |
| Ambient Temperature |
Temperature Range:－10 ～ ＋50℃ Humidity : 30 ～ 90% (no condensation) |
| Main Unit Size・Mass | 85W x 220H x 48D mm, 380 g (incl. Battries) |
| Pickup Size・Mass | φ70x46 mm, Approx.380g (incl. Batteries) |
Standard Accessories
| Item | Model | Quantity | Remarks | |
|---|---|---|---|---|
| Major Unit | Vibration Level Meter | TYPE 3233 | 1 | ― |
| Accelerometer | VP-1220E | 1 | ― | |
| Pickup Output Cable | BC-0233-3 | 1 | 3m | |
| Accessory | Carrying Case | ― | 1 | ― |
| AA size Manganese Cell(SUM-3) | ― | 4 | ― | |
| Instruction Manual | ― | 1 | ― | |
Option
| Item | Model | |
|---|---|---|
| Option | AC Adapter | AC-1026 |
| Extension Cable 5m | BC-0233-5 | |
| Extension Cable 10m | BC-0233-10 | |
| Extension Cable 20m | BC-0233-20 | |
| Extension Cable 30m | BC-0233-30 | |
| Interface Cable | BC-0026-3 | |
| Output Cable | BC-0073 | |
| Printer RS232C type | BS-80TSL | |
| Data Management Software* | NA-0233-3 | |
| AC Adapter for Printer | AC-1016 | |
| Roll Paper for Printer | BS-80-15 | |
| Conversion Adapter | KDA-60 | |
| Hand Strap | HS-1220E | |
