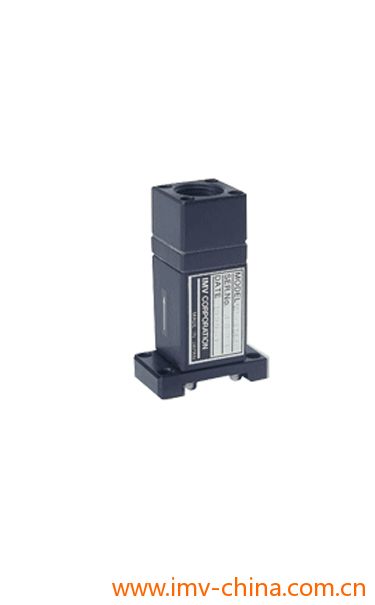

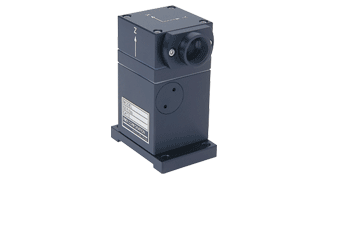

VP-3144 C/D - 动电速度式振动传感器

产品品牌:日本IMV

产品型号:VP-3144 C/D

主要技术指标:

灵敏度高,性能稳定,在宽幅范围内具有高级线性
相当大的输出
低输出阻抗允许使用长电缆。
没有外部电源是必要的。
最适合于套筒轴承的测量

常见问答

Products Line-up

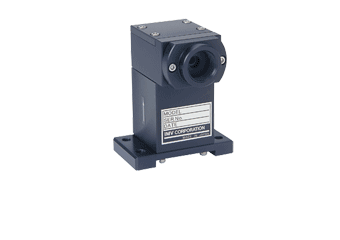

Medium FrequencyVP-3144 C/D Linear Pendulum type

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal/Vertical
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~1,000

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+80
Structure Drop proof IP32
Cable lead out Pipe thread(type C)Direct lead out clamp(type D)
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (g) 200

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

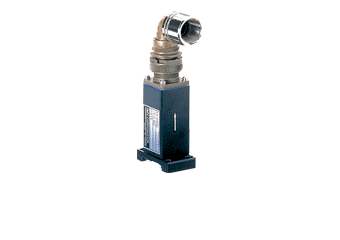

Medium Frequency VP-3144 F Linear pendulum type

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal or Vertical:
One direction
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~1,000

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+80
Structure Drop proof IP32
Cable connection MS Connector
Suitable Cable Special 2 Core shielded cable with connectors
Housing Material Aluminum
Mass (g) 300

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

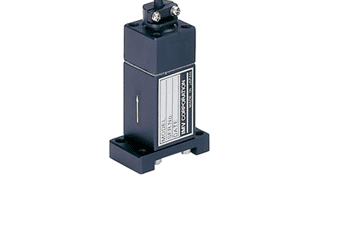

Medium Frequency・WaterproofVP-3144 W Linear pendulum type

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal/Vertical
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~1,000

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+80
Structure Waterproof IP66
Cable lead out Direct lead out clamp
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (g) 600

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

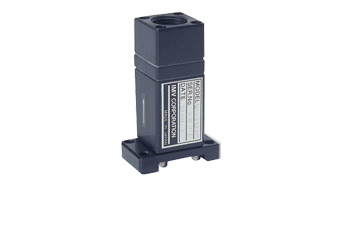

Medium Frequency・High temperatureVP-3374 C/D Linear pendulum type

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal/Vertical
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~1,000

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -30~+105
Structure Drop proof IP32
Cable lead out Pipe thread(type C)Direct
pull out clamp(type D)
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (g) 200

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

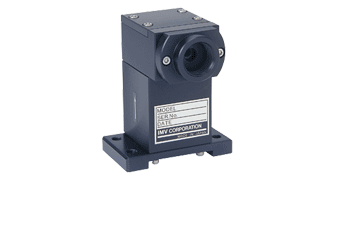

Medium Frequency・High temperatureVP-3544 C/D Linear pendulum type

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal/Vertical
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~1,000

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -30~+130
Structure Drop proof IP32
Cable lead out Pipe thread(type C)
Direct lead out clamp(type D)
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (g) 200

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

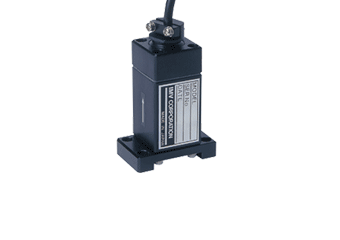

Medium Frequency・2/3 direction・Waterproof VP-3354 A・VP-3364 A Linear pendulum type

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal×2,Horizontal/Vertical
Horizontal×2・Vertical×1
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~500

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+80
Structure Waterproof IP66
Cable lead out Pipe thread
Suitable Cable 3 or 4 Cores shielded
Housing Material Aluminum
Mass (g) 700

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

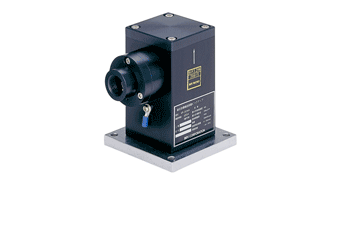

Medium Frequency・Flame-proof VP-3134 A

Sensitivity mV/(mm/s) 10
Sensitive Direction Horizontal or Vertical
Natural Frequency (Hz) 14
Frequency Range (Hz)

10~500

Allowable Acceleration (m/s2) 100
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+70
Structure Flame-proof d2G4
Cable lead out Pressure-resistant Packing
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (Kg) 2
Remarks Matching No.T39915

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

Low Frequency・Horizontal/Vertical dedicated VP-3213 A C/D・VP-3223 A C/D Linear pendulum type

Sensitivity mV/(mm/s) 17.5
Sensitive Direction Horizontal dedicated VP-3213
Vertical dedicated VP-3223
Natural Frequency (Hz) 4.5
Frequency Range (Hz)

5~500

Allowable Acceleration (m/s2) 30
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+65
Structure Drop-proof IP32
Cable lead out Pipe thread(type C)
Direct lead out clamp(type D)
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (g) 500

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

Low Frequency・Horizontal/Vertical dedicated・Waterproof VP-3213 AW・VP-3223 AW Linear pendulum type

Sensitivity mV/(mm/s) 17.5
Sensitive Direction Horizontal dedicated VP-3213
Vertical dedicated VP-3223
Natural Frequency (Hz) 4.5
Frequency Range (Hz)

5~500

Allowable Acceleration (m/s2) 30
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -20~+70
Structure Waterproof IP66
Cable lead out Pipe thread
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (g) 600

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions

Low Frequency・Horizontal/Vertical dedicated・Flame-proof VP-3133 H/V Linear pendulum type

Sensitivity mV/(mm/s) 17.5
Sensitive Direction Horizontal dedicated VP-3133H
Vertical dedicated VP-3133V
Natural Frequency (Hz) 4.5
Frequency Range (Hz)

5~500

Allowable Acceleration (m/s2) 30
Max. measurable Displacement (μmp-p) 1,000
Ambient Temperature (℃) -10~+70
Structure Flame-proof d2G4
Cable lead out Pressure-resistant Packing
Suitable Cable 2 Core shielded
Housing Material Aluminum
Mass (Kg) 2
Remarks Matching No.T39915

 Total response as of a Vibrometer depends upon the combination with Amplifire.

Please click to see Outward Dimensions
