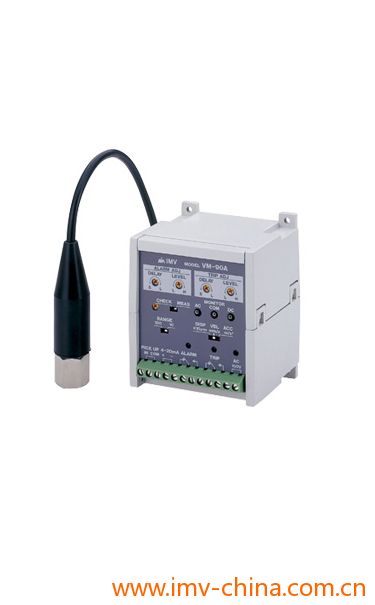

VM-90A - 振动开关

产品品牌:日本IMV

产品型号:VM-90A

主要技术指标:

低成本、 转换类型测量模式和范围

常见问答

Specifications

Item Specification
Frequency range Acceleration 8 Hz to 8 kHz, -3 dB (10 Hz to 5 kHz, ±1 dB)
Velocity 10 Hz to 1kHz, ±1.5 dB
Displacement 10 Hz to 300 Hz, ±1.5 dB
Measurement range Acceleration 10,100 m/s2
Velocity 10, 100 mm/s rms
Displacement 100, 1,000 μmp-p
Alarm output Individual level setting (upper 2 steps ) : 10 to 100 %
Individual 1c contact : maximum capacity DC30 V, 1A
Delay time setting : 1 to 10 seconds
Automatic reset
Level output DC4 – 20 mA (maximum load resistance 300Ω)
Monitor output AC3 VP-P full scale
DC2 V full scale
Power supply AC100 V±10 V, 47 to 63Hz
Power consumption 5VA or smaller
Operational temperature /
humidity range
0 to +50゚C, 35 to 95%RH (non-condensing)
Mass / Size 74(W) X 72(D) X 90(H) mm / approx. 250g

Standard composition

Item Notes
Pickup (VP-A51IW) Piesoelectric accelerometer
Pickup cable 5 m long cable with a pick up connector and waterproof cap
Standard accessories
  • ● screw for pickup attachment M6, hexagonal hole
  • ● sems screw for main body installation
  • ● hex key wrench
  • ● instruction mannual
    (with test certification)

Other lengths available on request. (Maximum length is 200m)

 Option

Item Notes
Mechanical filter
(MCF-6)
Prevention of incorrect operation on displacement /
velocity measurement. Elimination of high frequency component.

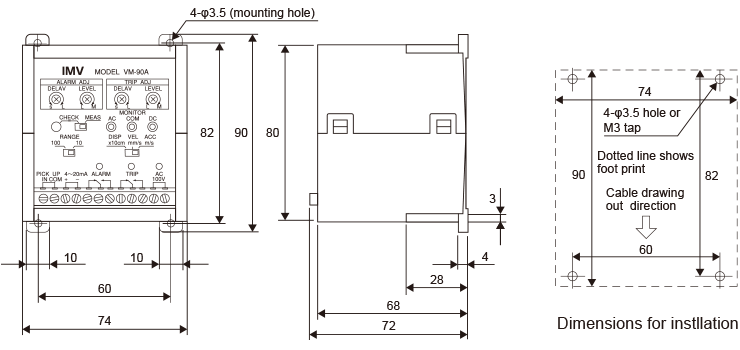

Outward dimensions
