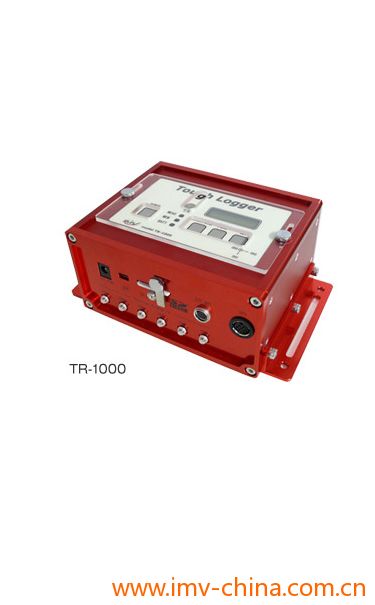

TR-1000 - 运输环境数据记录仪

产品品牌:日本IMV

产品型号:TR-1000

主要技术指标:

通过测量整个行程的振动、温度和湿度来调查和评价运输路线

常见问答

Specifications

Hardware

Item TR-1000
Mode Vibration (Built-in 3 ch + external connection 6 ch), Temperature/Humidity
Measurement range 100,500,1000 [m/s2]
Sampling rate 512,1280,2560 [Hz]
Temperature measurement -25 ~ +70℃
Humidity measurement 5 ~ 95%RH (No condensation)
Position measurement Latitude / longitude / Speed (Option)
Temperature/Humidity
Position recording interval
1 ~ 100 [min]( Changeable step 1 [min])
Storage capacity Standard 8GB (Max.32GB)
Data acquisition Continuous recording, Event recording
Memory (Storage medium) SD Card(SDHC)
Continuous measurement time 4 days
Power supply(Built-in battery) Rechargeable lithium-ion battery×2 pcs.
External power supply External battery (Option)/Car cigarette lighter socket (Option)
Outward size W140×D112×H71 [mm] (Fixture is not included)
Mass Approx. 1.5kg (Including battery)

*32GB memory card is not provided.

Software

Attached Software Wave Viewer (Waveform display, Power Spectrum Density (PSD) analysis)
GPS※(Position data CSV format output, NMEA basis file, Option)
Option Software Data extract software
(Data extract, Power Spectrum Density (PSD) Analysis)
Recommended
system requirement
◎OS Windows2000/XP/Vista/7(32bit)
◎CPU Pentium4(1GHz)or more(2GB or larger is reccommended)
◎Memory 1GB or more
