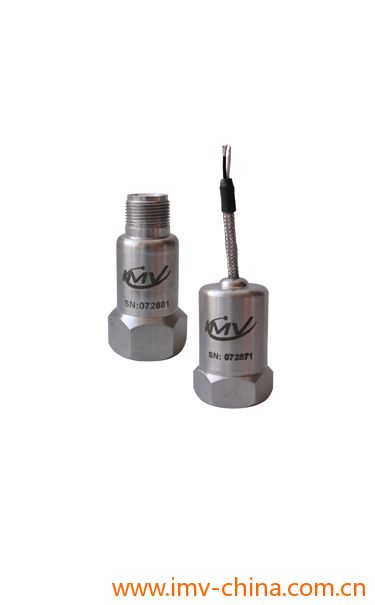

VP-420 - DC4-20mA输出加速度传感器

产品品牌:日本IMV

产品型号:VP-420

主要技术指标:

体积小,重量轻 、 选择钉,便于安装 、不同产品线根据现场环境

DC4-20mA输出加速度传感器420

常见问答

Output type /
Model
Velocity (current output)
VP-420
Velocity (current output) +
Acceleration waveform
(current output) VP-421
Acceleration
(current output)
VP-422
Frequency range 10 Hz to 1kHz, ± 5 %
(ISO10816)
10 Hz to 1 kHz, ± 5 %
(ISO10816)
10 Hz to 5 kHz, ± 3 dB
Measurement
range *1
10, 20, 25, 50, 100 mm/s rms 10, 20, 25, 50, 100 mm/s rms 9.8, 19.6, 49, 98, 980 m/s2 rms
Output
sensitivity
4 to 20 mA / 0 to full scale 4 to 20 mA / 0 to full scale
Acceleration waveform:5 mV / (m/s2)
        10.2 mV / (m/s2)
4 to 20 mA / 0 to full scale
Voltage supply DC15 to 30 V, 30 mA or more
Warm-up time Approx. 2 seconds
Output
impedance
DC24 V, maximum 600 Ω
Insulation
resistance
DC500 V, 100 MΩ or more
Operating temperature
range
-25 to 90 ℃
Cable length *1 Standard 5 m (maximum 1,000 m)
Weight Approx. 150 g (Cable is not included)
Protection
structure
Drop-proof direct connection cable type: IP65 (dust-proof, drop-proof)
Waterproof connector type : IP67 (dust-proof, waterproof)
Water resistant type: IP68 (dust-proof, perfect waterproof: water depth 100 m, 10 bar)
